PS-I01GK Instructions for the use of elevator floor sensor devices
This device is suitable for all need to PNP-type level sensor
signal elevator, the device to overcome the photoelectric and
traditional
flat-layer switch inherent vulnerability of the shortcomings, high
reliability and precision and fast response capability, low price
Very high price.
Main characters:
1. Output high level is 23.2V, low level is 0V, load current is
large, wide application range.
2. The output signal is square wave pulse signal, fast response and
reliable, easy to host the signal processing.
3. Ultra-low current consumption: 15mA, product life long.
4. The circuit has a power supply reverse protection, output short
circuit protection and prevent malfunction and other protection
functions.
5. Circuit with anti-± 6KV high voltage static, ± 4.5Kv group pulse
and surge protection.
6. Electrical performance in line with "International
Electrotechnical Commission (IEC)" standard requirements;
7. High reliability, small size, installation and commissioning is
very convenient. Simple structure, low price.
Technical Specification:
| ⒈ | Application Range: | Applicable to all need to PNP-type level switch signal elevator |
| ⒉ | Response time | 4ms |
| ⒊ | Current consumption | 15mA |
| 4 | Load current | 120mA |
| 5. | Output form: | PNP switch signal: no metal into the sensor area; output 0v low; a
metal into the sensor area when the output high. |
| 6 | Working temperature: | -25～55℃ |
| 7 | Working environment humidity | 35%~85%RH |
| 8 | Power supply: | DC 24V(±5%),Machine operating current≤100mA |
| 9. | Protection class | IP53 |
| 10 | Withstand voltage | 1000V ,50Hz,1 minute |
| 11 | Insulation resistance | DC500V,≥20MΩ, |
| 12 | Install Position: | The elevator car is close to the partition board |
| 13 | Overall Size: | 100mm*65mm*25mm |
Working Principle:
During the operation of the elevator, the system is based on the
installation of the elevator shaft into the sensor area of the
induction sensor area, the magnetic
plate produced by the eddy current effect, weaken the
electromagnetic field within the sensing area, so that the device
sensor internal oscillation circuit stop Vibration,
through the signal processing and amplification of a 23.2v
high-level pulse signal; when the isolation plate from the layer
sensor sensor area, the induction area of the
electromagnetic field back to normal, the oscillation circuit to
start again, the product output low , Thereby achieving the
determination of the position of the elevator
car and the purpose of reaching the elevator deck
Product appearance and electrical wiring diagram:
l System wiring principle:
| No. | Cable color | Wiring instructions |
| 1 | (Brown) | +DC24V |
| 2 | (Blue) | Com |
| 3 | (Black) | Signal output |
Never connect the device's output cable directly to an external
power supply, which may cause permanent damage.
Installing Method:
Adjustment:
⒈First of all, according to the hoistway inside the magnetic disk
bracket bracket installed on the magnetic plate, and then installed
in the straight beam position of the
device fixed bracket. Finally, adjust the position of the leveling
sensor according to the position of the magnetic plate, make sure
that the partition plate is in the center
of the sensing area of the device. The partition plate can not
damage the device during the operation of the elevator.
2. After securing the installation position, connect the product
terminals according to the above system wiring principle. One end
is connected with the main unit and one
end is connected to the output port of the unit. ,
3. In the process of moving up and down the elevator, the magnetic
plate into the device sensing area, the product indicator light
will be red, the output high, separated
from the device sensing area, the product indicator light off, the
output low The At this point, the product into the normal working
state debugging is completed.
other:
Instruction Manual:1 set
Tighten the screws(M5*30) 2sets
If the system is abnormal during debugging or use, please contact
us directly.

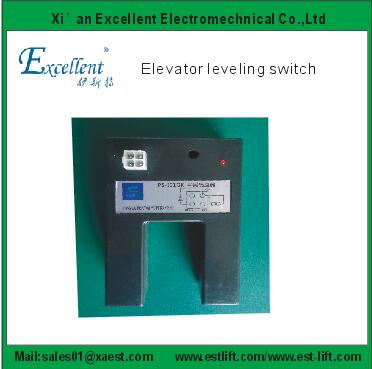

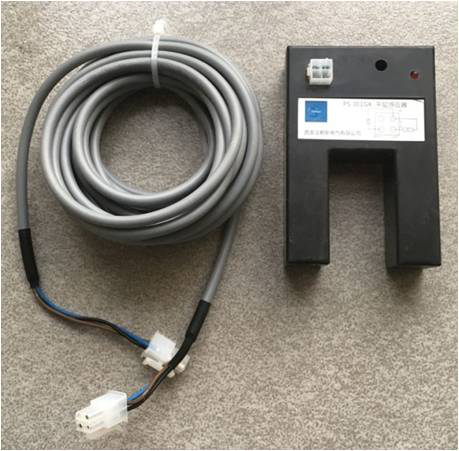

Products photo show:
