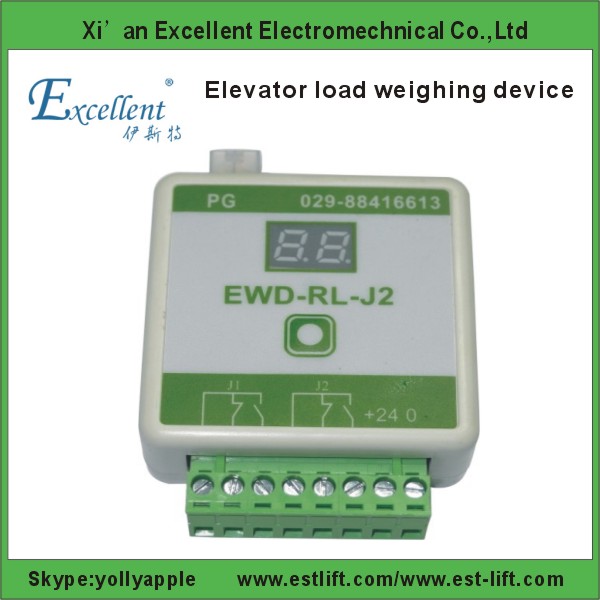

Type EWD-RL-J2 Elevator Weighing Device
System Introduction
Main Features:
⒈ | Application Range | Being applicable to all elevators with payload of 500㎏～20000㎏ for
full-load and overload signal(Depending on loading sensor with the
options of 1.5tons/3T/5T) |
⒉ | Sensitivity | For the elevator with rated load of 1 ton, it is 5Kg |
⒊ | System Error | ≤1.5％(5～40℃) |
⒋ | Output Mode | Switching Signal:Full-load and overload Dynamic Close and Dynamic
Open contact |
⒌ | Operation Temperature | -25～55℃ |
⒍ | Power Source | DC 24V(±10%),Operating current for the whole set≤100mA |
Intensity exceeding the above listed parameter limits may cause the
system abnormality or its permanent damage.

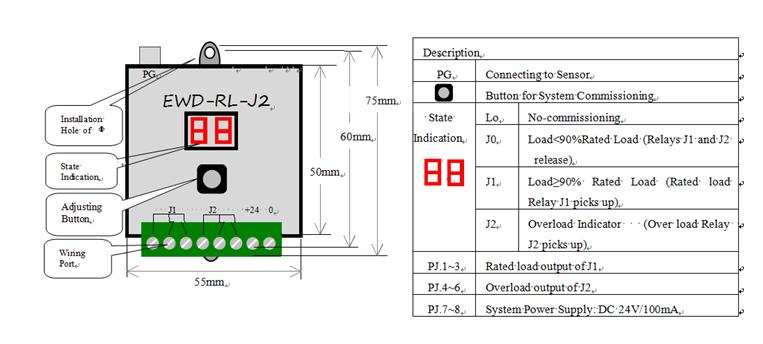

Product Appearance, Installing Method and Relevant Structure
<!--[endif]--><!--[endif]-->
Installation method of the type A sensor:
Installation method of the type D sensor:
System Adjustment:
Description of Other Indication States:
| Display Code | Implication | Solution |
|---|
1 | FY | System Startup |
2 | PC | Sensor Resetting |
3 | PP | Get into the status of operation parameters modification |
4 | Lo | Ready for Autotuning Operation |
5 | PL | No payload is detected by sensor | (Static Displaying represents preparative status,twinkling
displaying for the end of testing |
6 | PH | Exceeding the measuring range of maximum load |
7 | EL | Saved | Check the cable of the sensor, system power and payload |
8 | EH | Saving Failure |
9 | Pan | Saved |
|
10 | EA | Saving Failure | Remodify the operation parameters |
After system commissioning, press and hold 【◎】 in normal
operation,〖J1〗／〖J2〗will flicker alternately,at this time, J1/J2
output alternately.
Autotuning operation for Separate items:(Use: It is in need to
individually autotune no-load or rated load for a well-adjusted
system separately)
Promise:
<!--[if !supportLists]-->1. <!--[endif]-->If this
system appears any quality problem of product itself in 1 year
after delivery, it will be replaced freely(damage of the product
seal will not be dealt with).
<!--[if !supportLists]-->2. <!--[endif]-->Any system
abnormality in adjustment or operation, please contact our company
directly.
Packing List | Controller of EWD-RL-J2 Elevator Loading Device | 1 | Type EWD-GDH: sensor and its accessories | 1Set |
Screw Sets M4 X 40 | 2 Sets | System Instruction Manual | 1 Copy |
